What Does It Take To Repair Hydraulic Cylinders?

Hydraulic cylinders are crucial parts of many machines like excavators and factory equipment. They help these machines lift heavy items and do tough jobs. But what happens when these cylinders break or stop working well?

Repairing them is not just about fixing something broken; it’s about understanding a complex part that handles a lot of pressure and movement. In this blog, we’ll walk you through what it takes to fix hydraulic cylinders.

We’ll look at the common problems they face, how experts diagnose these issues, and the steps taken to make them work like new again. Whether you’re a machine owner or just curious, you’ll learn how important proper repair work is to keep machines running smoothly.

Understanding Hydraulic Cylinders and Common Issues

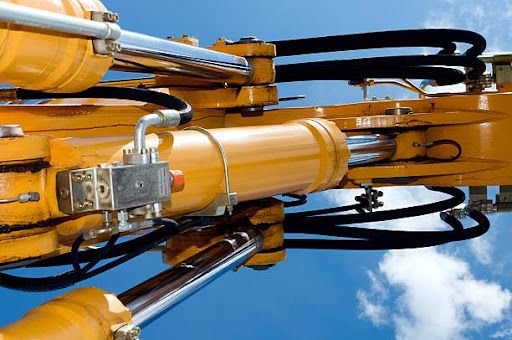

Hydraulic cylinders are powerful components that help machines do heavy lifting and pushing tasks. They are like the strong arms of machines, found in everything from excavators digging up the earth to factory machines that press and bend materials. Despite their strength, hydraulic cylinders can run into problems that stop them from working right.

One common issue is when the cylinder becomes misaligned due to everyday wear and tear or incorrect installation. This misalignment can lead to leaks, where the oil that makes the cylinder move smoothly starts escaping. If the leaks get bad, the cylinder won’t be able to build up enough pressure to do its job.

Another problem happens with the seals, the parts that keep the oil inside the cylinder. Over time, these seals can crack or shrink, letting oil leak out and dirt get in. This dirt can scratch the cylinder’s inside surfaces, making the leaks even worse.

Lastly, damage to the piston rod, the part that moves in and out of the cylinder tube, can also cause big problems. If the rod gets bent or the surface gets rough, it can tear the seals every time the cylinder moves, leading to more leaks and less power.

In our hydraulic repair shop, we see these issues often, especially with big machines like the EX 3600 mining excavator. Fixing these problems is not just about swapping out the broken parts. It’s about understanding why they broke in the first place and making sure they’re fixed in a way that they won’t break again soon. We take our time to measure, cut, and fit everything precisely, ensuring every repaired cylinder is ready to take on heavy work once more.

Detailed Tour of the Repair Process

Repairing hydraulic cylinders is like fixing a giant’s powerful arm so it can lift and move heavy things again. Let’s walk through how we fix these big parts in our shop.

Initial Assessment and Disassembly

When a hydraulic cylinder comes into our shop, the first thing we do is check it carefully to find out what’s wrong. This is like being a detective, where we look for clues like oil leaks, bent rods, or worn-out seals. We talk to the machine owners too, because they know how their equipment has been acting.

Taking the cylinder apart is next. We do this very carefully to avoid any new damage. Using tools like wrenches and presses, we remove each piece, noting where each part fits and its condition. Sometimes, simple tools like hammers are all we need, but other times, more precise tools are necessary to handle delicate parts without causing harm.

During disassembly, we also measure parts like the cylinder barrel and the piston rod to see if they fit as they should. If anything is even a tiny bit off, like three thousandths of an inch out of tolerance, it can cause big problems, making the cylinder work harder and wear out faster. So, we take notes and make plans for fixing these issues in the next steps.

Machining and Fabrication Capabilities

Once we know what parts of the cylinder need help, we move on to machining and fabrication. This is where we fix or make new parts to get the cylinder back in top shape. We use a variety of machines, like lathes and milling machines, which reshape metal precisely and smoothly.

Our shop is equipped with advanced tools like the Kingston HR 4000 lathe, which can handle very big jobs, such as turning large rods or boring out damaged barrels. These machines help us ensure every repaired or newly made part meets strict standards for size and shape, which is crucial for the cylinder’s performance.

Fabrication involves not just cutting and shaping but also ensuring that everything we make fits perfectly back into the cylinder. This might mean creating a new piston rod from scratch or repairing a slightly bent barrel so it’s straight again. We often make our parts in-house, which lets us control quality and speed up the repair process.

Welding and Metalwork

Welding is a big part of fixing hydraulic cylinders. We might need to weld new metal onto a worn rod or fix cracks in the cylinder body. Our shop uses top-notch welding equipment that can handle different kinds of metals and welding styles, like TIG, MIG, and stick welding.

We take welding seriously because it needs to be strong and hold up under the intense pressure that hydraulic cylinders work under. Before we start welding, we prepare the metal surfaces carefully, cleaning them and shaping them so the welds are clean and strong.

After welding, we often need to do more machining, like smoothing out the welds and ensuring everything still fits together right. This is important because even a small bump from a weld can interfere with how the cylinder works, leading to more wear and tear or even causing new damage.

Quality Control and Testing

The final steps in the repair process are all about making sure the cylinder is ready to go back to work. This means checking everything one more time and testing the cylinder under conditions similar to what it will face in the real world.

We use pressure tests to make sure there are no leaks and that the cylinder can handle the high pressures it will be under when it’s working. We also check the alignment of all the parts, ensuring that everything moves smoothly without any sticking or extra friction.

Our shop also uses special tools to monitor things like oil contamination and the condition of the seals. This helps us catch any last-minute issues before the cylinder leaves our shop. We want to be sure that when a cylinder goes back to its job, it’s in better condition than when it came in, ready to handle whatever work it needs to do without any problems.

Specialized Equipment and Techniques

Repairing hydraulic cylinders isn’t just about fixing what’s broken; it’s about using the right tools and techniques to make sure everything works better than before. Our shop is equipped with specialized tools that help us do our jobs faster and more accurately. Let’s dive into some of these tools and how we use them to fix hydraulic cylinders.

1. Radial Arm Drill:

One of the stars of our workshop is the radial arm drill. This powerful machine can handle big, tough jobs quickly. It works by holding a large drill bit steady while it bores into metal, making perfect holes every time. This is especially helpful when we need to fix parts of a hydraulic cylinder that have worn out or aren’t round anymore. With the radial arm drill, we can ensure that every hole is precise, which is crucial for the cylinder to work smoothly without any leaks.

2. Lathe Machines:

Our lathes, like the Kingston HR 4000, are essential for shaping and smoothing parts. When a hydraulic cylinder comes in with a bent rod or a worn-out barrel, the lathe helps us get it back to the right shape. The lathe spins the metal part while cutting tools shave off tiny bits of metal. This allows us to achieve the exact dimensions needed for the cylinder to function properly. It’s a bit like using a giant pencil sharpener, but for metal.

3. Welding Stations:

We have several welding stations, including the multi-process Miller XMT 350, which allows us to TIG, MIG, and stick weld. Welding is critical when parts of the cylinder are cracked or broken. We use our welders to fill in gaps and join metal together, making sure our welds are as strong as the original metal, if not stronger. This ensures that once the cylinder is back in use, it can withstand the pressures of daily operations without failing.

4. Glass Bead Machine:

This machine is like a super-powerful sandblaster. It shoots tiny glass beads at high speed to clean metal parts. This process is crucial because it removes rust, paint, and other debris from the cylinder parts, allowing us to see any hidden cracks or damage. It also prepares the surface for welding or painting, ensuring that any coatings adhere properly and last longer.

5. Oil Contamination Monitoring System:

Our high-tech oil contamination monitoring system checks the cleanliness and quality of the hydraulic oil. This tool is essential because dirty oil can cause a lot of problems in hydraulic systems, like wear and tear on seals and other moving parts. By testing the oil, we can decide if it needs to be replaced or filtered, ensuring that the hydraulic system stays clean and functional.

6. Custom Tool Making:

Sometimes, the best tool for a job doesn’t exist yet. That’s when we get creative. We design and build custom tools in our shop. This might be a special wrench to fit a unique bolt or a custom jig that holds parts in place while we work on them. Making our own tools helps us do repairs that other shops can’t, giving us an edge in fixing complex or unusual cylinders.

7. Honing and Polishing Equipment:

After welding or machining, cylinder surfaces need to be smooth to work properly. We use honing and polishing tools to finish the surfaces, ensuring they meet precise specifications. This step is critical because even a small scratch or irregularity can cause leaks or damage the seals once the cylinder is back in operation.

Using these specialized tools and techniques, we ensure that every hydraulic cylinder we repair is set up for long-term success. Our approach isn’t just about making quick fixes; it’s about using the right tools to make detailed, durable repairs. This attention to detail and quality is what sets us apart and keeps hydraulic systems running stronger and longer.

Safety and Efficiency in the Workshop

In our hydraulic cylinder repair shop, safety and efficiency are as important as the tools we use. We work hard to make sure that everyone who comes into our workshop can do their job safely and efficiently. Here’s how we do it:

1. Keeping Things Tidy:

First, we keep our workspace very clean and organized. Each tool and machine has its own place, which helps us avoid accidents. Imagine if everything in your room had a special spot; you’d never trip over anything!

2. Everyone Knows the Rules:

Safety starts with knowing what to do and how to do it safely. Everyone who works here learns about safety the day they start. We keep learning new things too, so we always know the best and safest ways to work.

3. The Right Gear:

Just like you wear a helmet when you ride a bike, we wear the right safety gear to protect us at work. This includes tough boots, gloves, and goggles that keep us safe from sparks, sharp edges, and anything else that could hurt us.

4. Smart Working:

We have a special way of doing things here that helps us work fast without making mistakes. When a broken cylinder comes in, we check it over carefully, make a plan, and then get to work. This means we don’t waste time, and we fix things right the first time.

Read Also: Different Types of Hydraulic Seals

5. Top-Notch Tools:

Our machines and tools are really modern and safe. They have shields and buttons that can stop them quickly if something goes wrong. This helps us avoid accidents and makes sure we can do our job without worrying.

6. Keeping It Clean:

We always clean up spills right away and sweep up at the end of the day. A clean shop is a safe shop because no one slips or trips. It’s just like how it’s easier to play in a clean yard.

7. Looking After Our Tools:

Just like you take care of your toys and books, we take care of our tools. We check them often to make sure they are in good shape. This keeps them ready to go and safe to use anytime.

8. Building What We Need:

Sometimes, we need a tool or holder that doesn’t exist. When that happens, we build it ourselves. This makes sure that it fits exactly what we need, and it’s made just right for the job. This is a bit like making a custom shelf for your special toys or books.

In our shop, making sure everyone goes home safe at the end of the day is just as important as fixing hydraulic cylinders. We work smart, we stay safe, and we fix things the right way. This keeps our workers happy and our customers happy because they know their machines are in good hands.

Bottom Line

Fixing hydraulic cylinders requires precision, skill, and the right environment. At Delanges Industries, we specialize in tackling these challenges with expert care. Our team is equipped with advanced tools and a wealth of experience to ensure every repair meets high standards of quality and safety. From minor leaks to major rebuilds, we handle it all.

If your hydraulic systems need attention, reach out to us. We’re committed to restoring your equipment’s functionality with efficiency and expertise. Trust us to extend the life of your machinery and keep your operations running smoothly. Reach out today and let us support your success.
